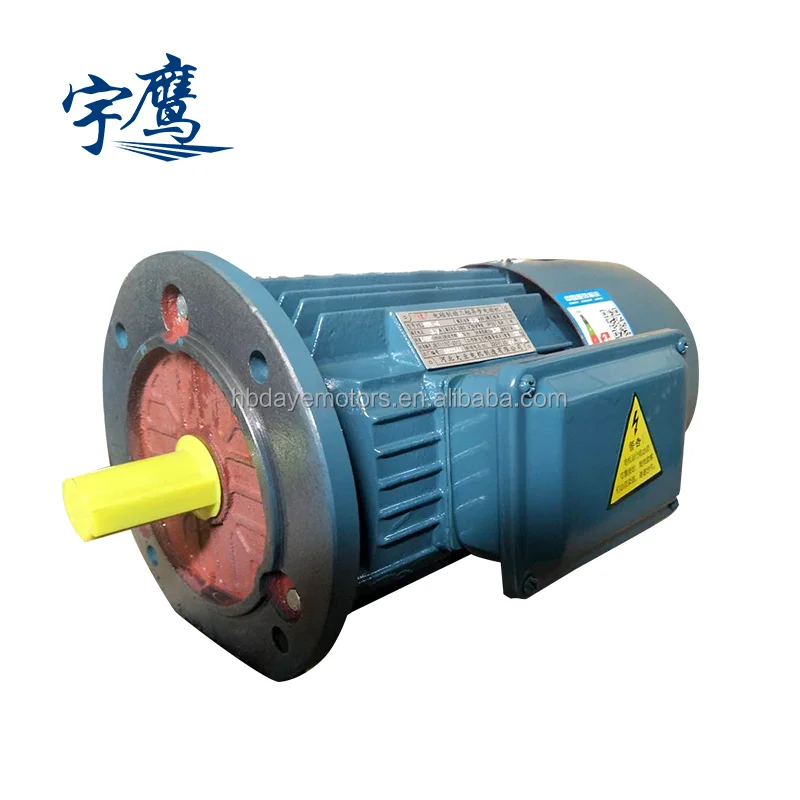

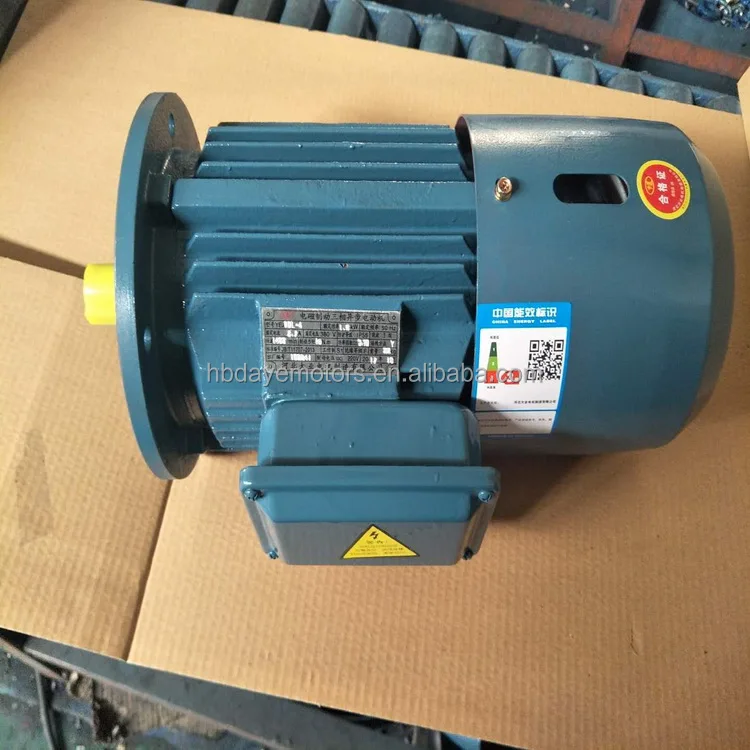

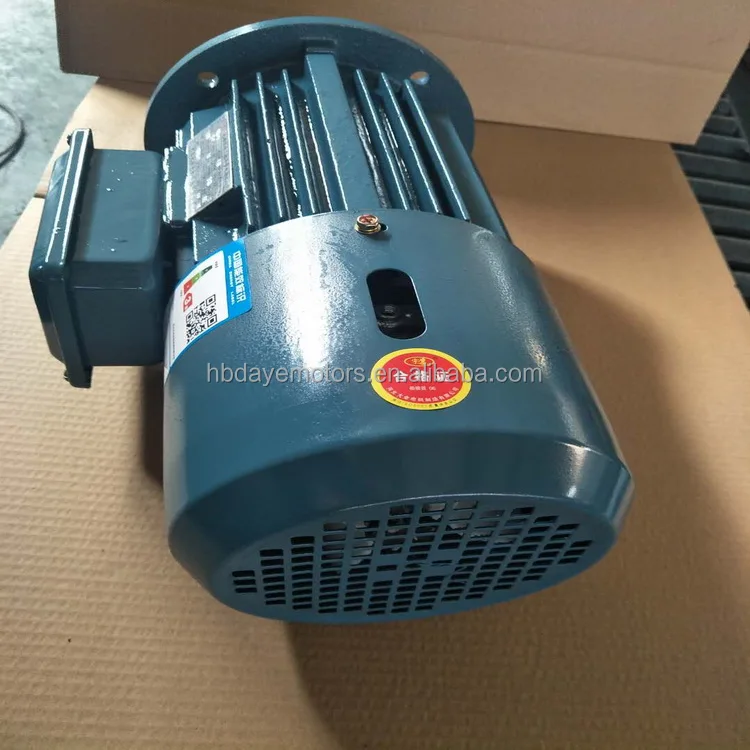

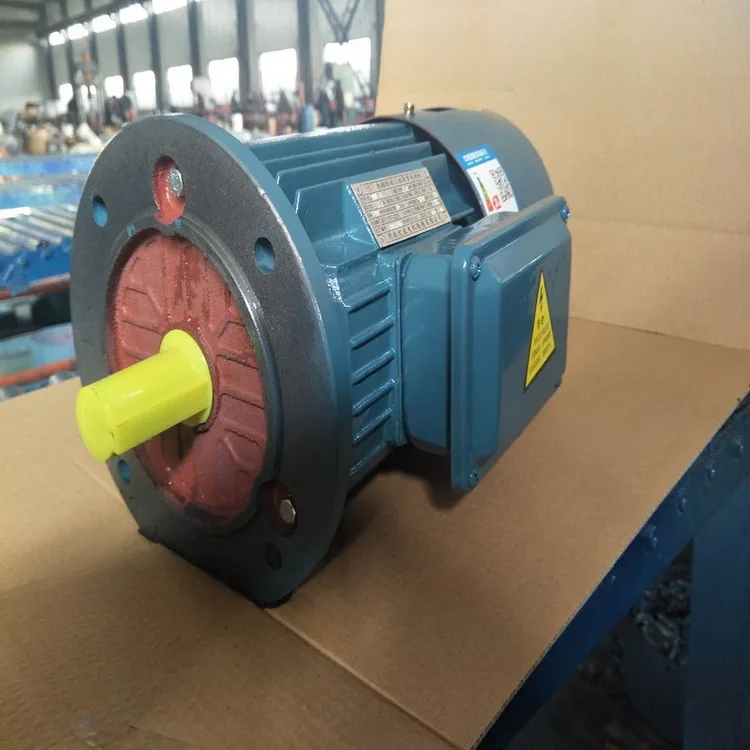

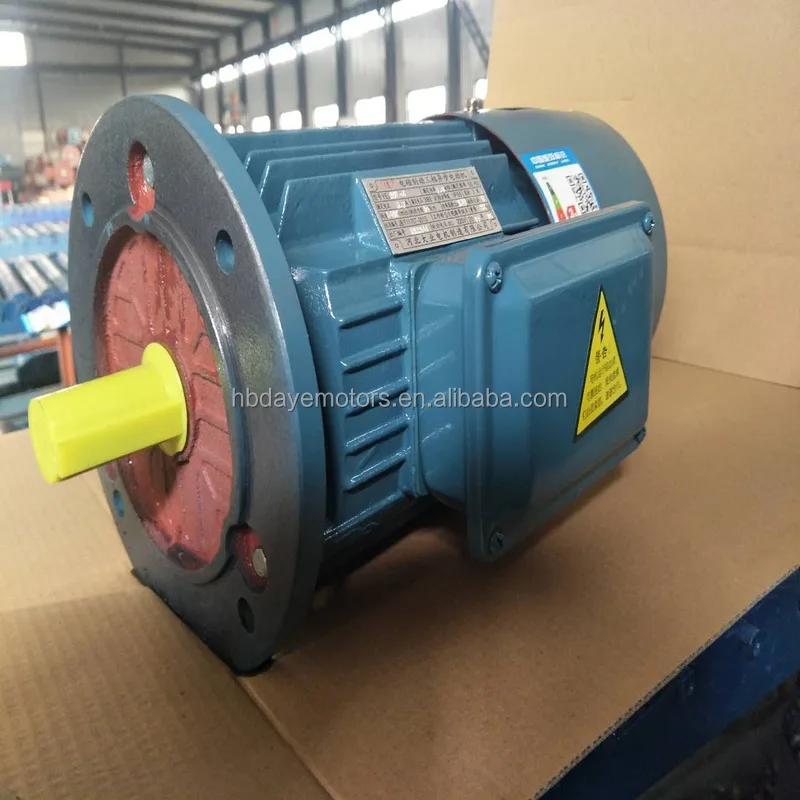

YEJ series electromagnetic brake three phase asynchronous motor
YEJ series electromagnetic brake motor are the improved products of YEJ series products.they meet the requirement of JB/T6456 electrical performance in according with Y2 series technical standard.
This series motors equipped with the manfnetic braker on moved shaft end.when the power off the brake disc with press to the motor back cover,then raise the friction braking toque lead to stop the machine,Unload braking time is subjected to the fram size which range is from 0.15-0.45 seconds.the power for braker must work together with the motor.YEJ2,YDEJ2 series motor have wide range of many area like machine processing equipment,convey machine,packing machine,and the machine for woodworking,food,chemistry,textile,architecture,shop etc.
Centre height of frame size:63~225mm
Controller’s power:center height of fram: ≤100mm,AC220V(99v after rectification)
center height of fram: ≥ 112mm,AC380V(170v after rectification)
Rated voltage:380V(special order according to request)
Reted frequency:50Hz or 60Hz
Protection class:IP54 or IP55
Insulation class:B/F
Doty type:S1
| THE PRODUCTS WE CAN MAKE | |
| Brand | yuying |
| Frequency | 50/60HZ |
| voltage | 380V(400V,440v,660v) |
| protection class | IP54/IP55 |
| Power range | 0.55-160kw |
| Type | High-efficiency three-phase asynchronous motor\Pole-changing and multi-speed asynchronous motor |
| Insulation class | F |
| motor effiency | IE2 |
| Doty type | S1 |
| Speed | 1500r/min,3000r/min,1000r/min |
| All series | YE3\YE2\Y2\YD2\YL\YS |
FAQ
Q1: Are you trading company or manufacturer ?
A:We are factory.
Q2: What’s your main products?
A: Our main products are YE2,YD,YEJ,YVP,YCT,Ylseries motors
Q3: What is your terms of payment ?
A: Payment for sample, 100% in advance. Payment for bulk production , 30% T/T in advance ,balance before shippment.
Q4: Can you provide some samples?
A: Yes we can,but you need pay the sample fee and freight charge.
Q5: What’s your MOQ?
A: The minimum order quantity of motor is 1pcs.
Q6: What’s your delivery time ?
A: A: For sample, it is 3 days if the goods are in stock. or it is 7 days if the goods are not in stock. For one 40''container, it is about 15~25days according to the quantity.
Q7: Could you accept OEM and customize?
A: Yes, we can customize according to the sample and drawing.
